35mm Concealed Hinge Jig, Accurate Locking Hinge Drilling Jig, Hole Guide Hole Puncher Locator Tools For Door Cabinets Hinges

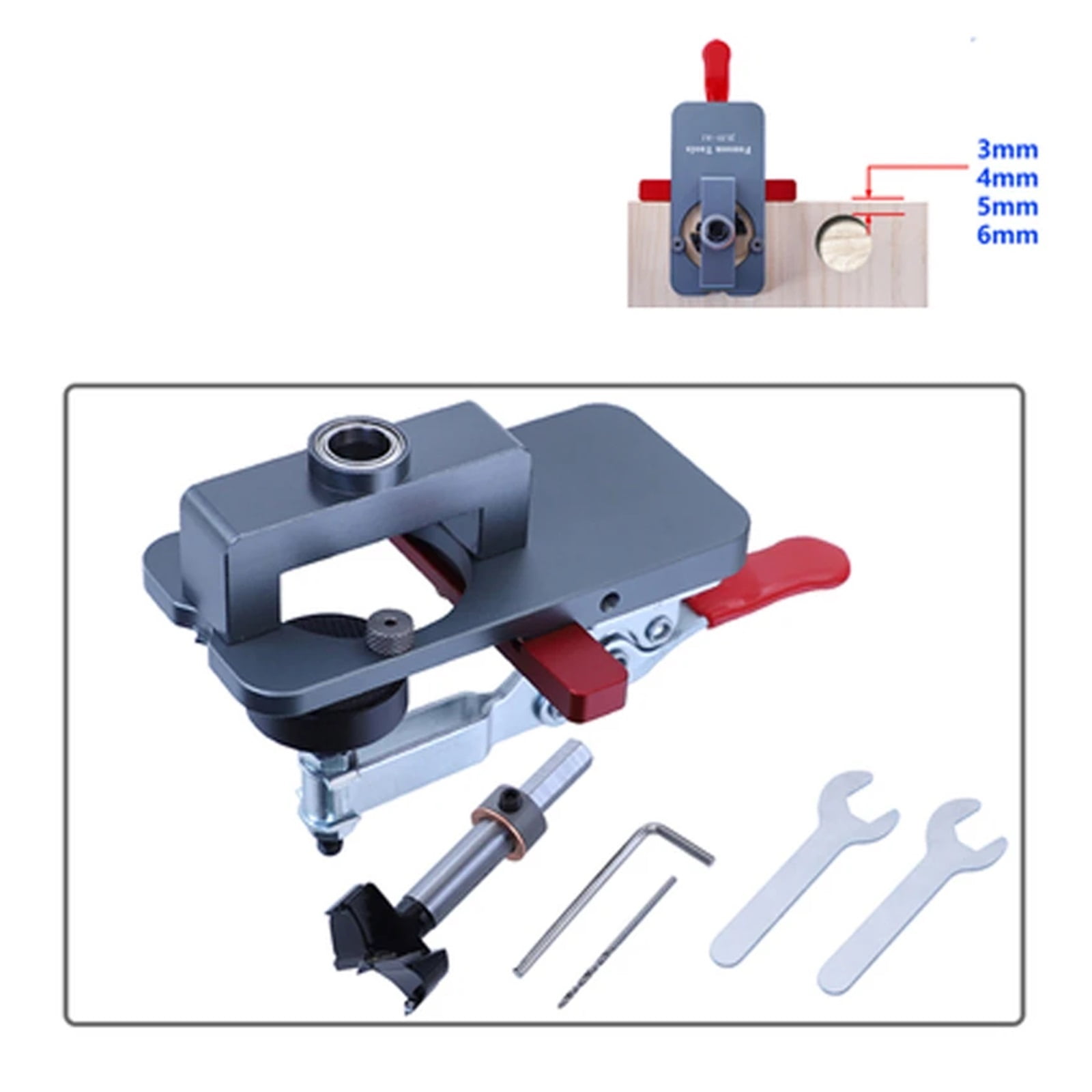

<p>Product features: Aluminum alloy material, precision manufacturing, accurate positioning, easy to operate.</p><p>Uses: 35mm hinge hole installation, door hinge hole positioning, woodworking hole auxiliary tool</p><p>The set includes: hinge punch positioner body, 35mm hole opener (with limit ring) *1, wrench *2, 2mm drill *1, hex wrench *1</p><p>Product weight: 588g,</p><p>Packing: kraft paper box, packing size: 190*110*60mm</p>

• 1, install the 35mm hole opener, adjust the hole depth, the normal 12-13mm, and then lock the limit ring.
• 2. Adjust the fixed size of the quick clip black block (Note: the tool can adjust the fixed size of the board to 15-25mm)
• 3. Move the hole punch to the position where the board is marked and punched, and lock the quick clip.
• 4, the electric drill tights the handle of the hole opener, presses the hole at a constant speed to a depth of 12-13mm, and then makes 2mm screw holes on both sides. 5.35mm hole to edge distance of 5mm, suitable for most commonly used hinges
• 6. Install 35mm hinges
